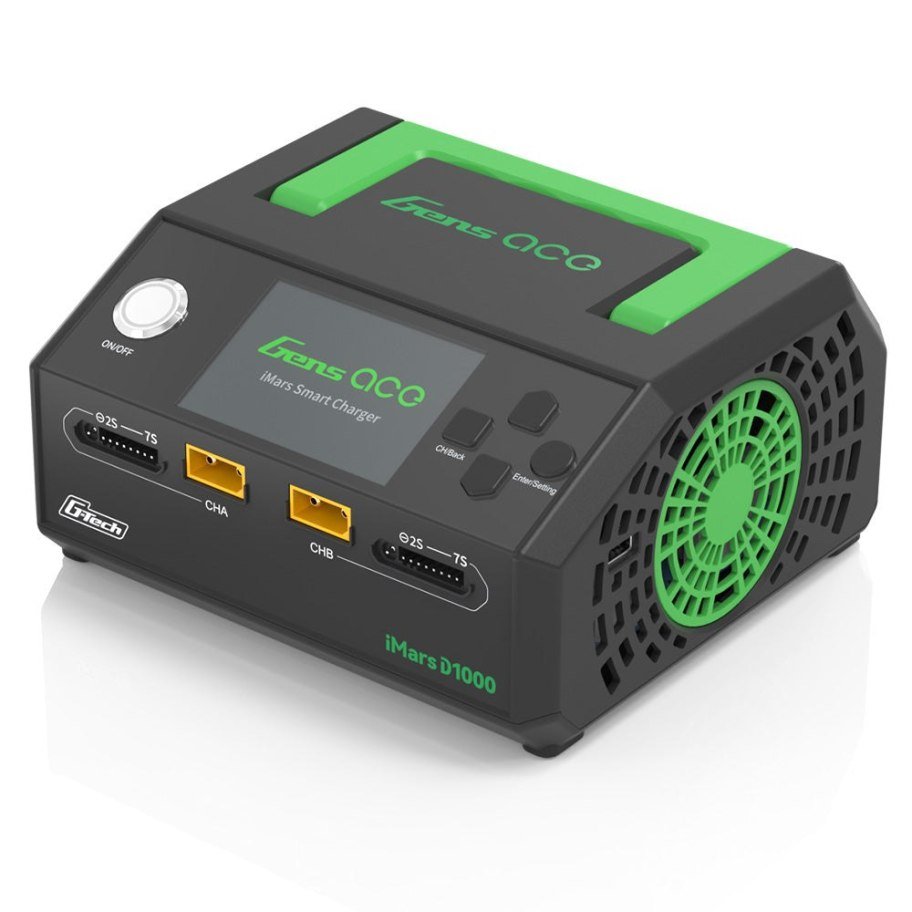

Gens Ace iMars D1000 G-Tech — Dual-Channel Smart Charger 25A / 1000W
The Gens Ace iMars D1000 G-Tech is a dual-channel AC charger built for high-capacity LiPo batteries, delivering up to 1000W of total charging power. Equipped with G-Tech smart technology, it automatically recognises the type, voltage and recommended charge current of compatible G-Tech batteries through the balance connector, ensuring simple, safe and efficient charging for hobbyists and demanding users alike.
Power & Channels
- Total power: AC 1000W (500W per channel).
- Max charging current: 25A × 2 fully independent channels.
- Max discharge current: up to 8A × 2 channels.
- Max discharge power: 70W × 2 channels.
- Input voltage: AC 100–240V 50/60Hz.
- Output voltage: DC 0–32V.
- Compatible with LiPo/LiHV 1–7S.
G-Tech Technology & Interface
- Automatic plug & play recognition of G-Tech batteries: type, voltage and recommended current with no manual setup.
- Manual mode available for non-G-Tech batteries.
- Wide-view IPS display showing charging capacity, cell voltage difference and internal resistance (IR).
- Battery cycling function: automatic charge/discharge to a set per-cell voltage, with user-programmable cycle count.
- Data logging and storage for battery health tracking.
Safety
- 8-level protection system: over-temperature, over-current, over-charge, over-voltage, disconnection, short circuit, single-cell low voltage and reverse polarity.
Dimensions & Weight
- Dimensions: 186 × 174 × 95mm.
- Weight: approx. 1.7kg.
- Working temperature: 0°C to 60°C.
- Storage temperature: -20°C to 60°C.
What's in the Box
- 1 × Gens Ace iMars D1000 charger
- 1 × AC input cable
- 1 × USB cable
- 1 × Instruction manual
A compact, powerful desktop charger for anyone managing multiple high-capacity LiPo/LiHV batteries who wants to charge two packs at once with total safety and detailed session data.
