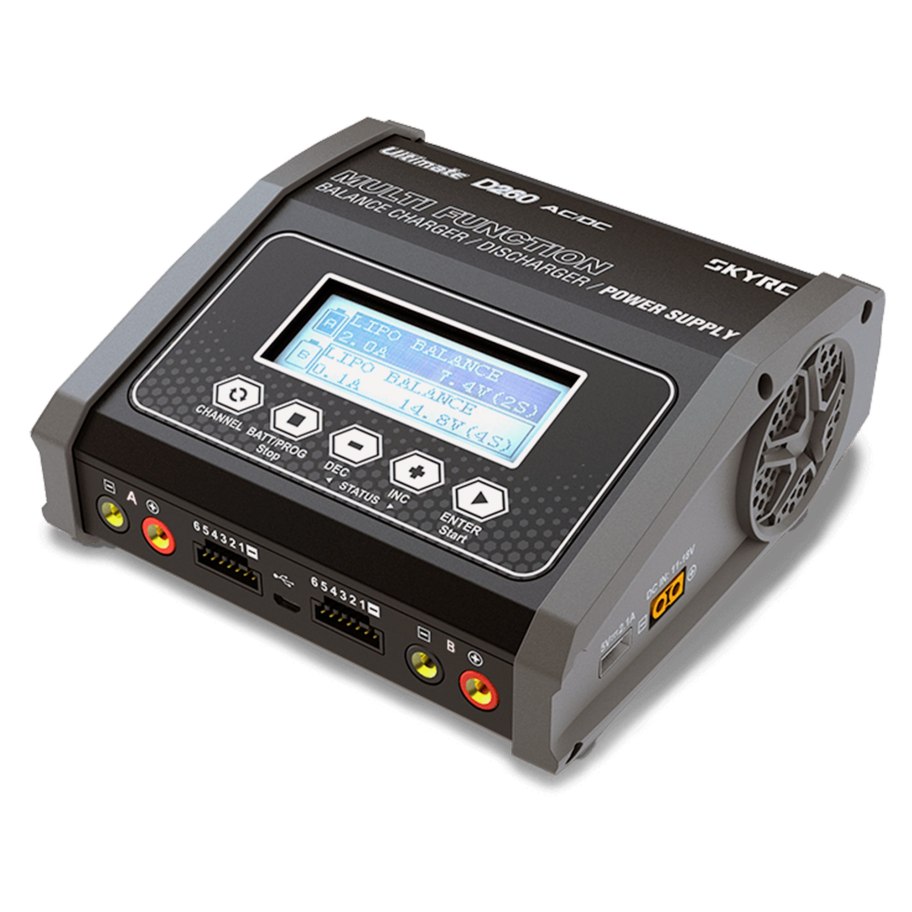

Skyrc D260 2x 14A/130W Charger

SkyRC D260 Charger: High-Performance Charging for RC Enthusiasts

The SkyRC D260 is a dual-channel charger with AC/DC input, featuring an intuitive interface and button design that makes it incredibly easy to operate. With two independent circuits and the ability to charge batteries up to 6S at a maximum of 14A per channel, the D260 is a smart choice.

Multipurpose for Most Battery Chemistries

This charger is compatible with a wide variety of battery types, including LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCD, and Pb (lead-acid).

Dual Output

The D260 allows you to charge two different batteries simultaneously with a rated power of 130W per channel. The maximum charge current can be up to 14 amperes.

Intuitive Operation

The five-button panel and the backlit LCD screen make charging a breeze, even for beginners. The D260 inherits features from other SkyRC chargers, and many users will find it familiar and easy to use. Even if the D260 is your first programmable charger, you'll find it easy to learn. Users can simply scroll through parameters, use the up/down keys to adjust values, and then click a key to confirm.

ARM® Cortex® Processor

The ARM® Cortex®-M3 32-bit high-speed processor with 20 times improved data processing capability. It uses a wide range of input voltages from 2.5V to 5.5V, giving it strong anti-interference capability. The processor plays a central role in managing and controlling the charging operations. It controls the user interface, monitors and manages the charging process, allows the selection of charging modes, and processes real-time data. It also contributes to safety features, ensuring precise and safe battery charging.

LiHV Mode Available

The additional LiHV mode allows charging the new generation of LiPo batteries with a final charge voltage of 4.35V.

PC Software for Data Analysis and Firmware Upgrade

Charge Master can initiate/stop the charging process and display real-time graphs of current, voltage, capacity, and monitor single-cell voltage.

Technical Specifications:

• Dimensions: 110x70x40mm
• Weight: 191g
• AC Input: 100-240V
• Battery Type: LiPo/LiFe/LiHV/NiMH
• Cell Count: LiPo/LiFe/LiHV: 2-4S, NiMH: 6-8S
• Charge Current: 1A/2A/3A/4A ± 10%
• Cell Termination Voltage: LiPo 4.2V±0.02V, LiHV: 4.35V±0.02V, LiFe: 3.6V±0.02V, NiMH: - ΔV
• Circuit Power: 50W
• Balance Current Drain: 300mA
