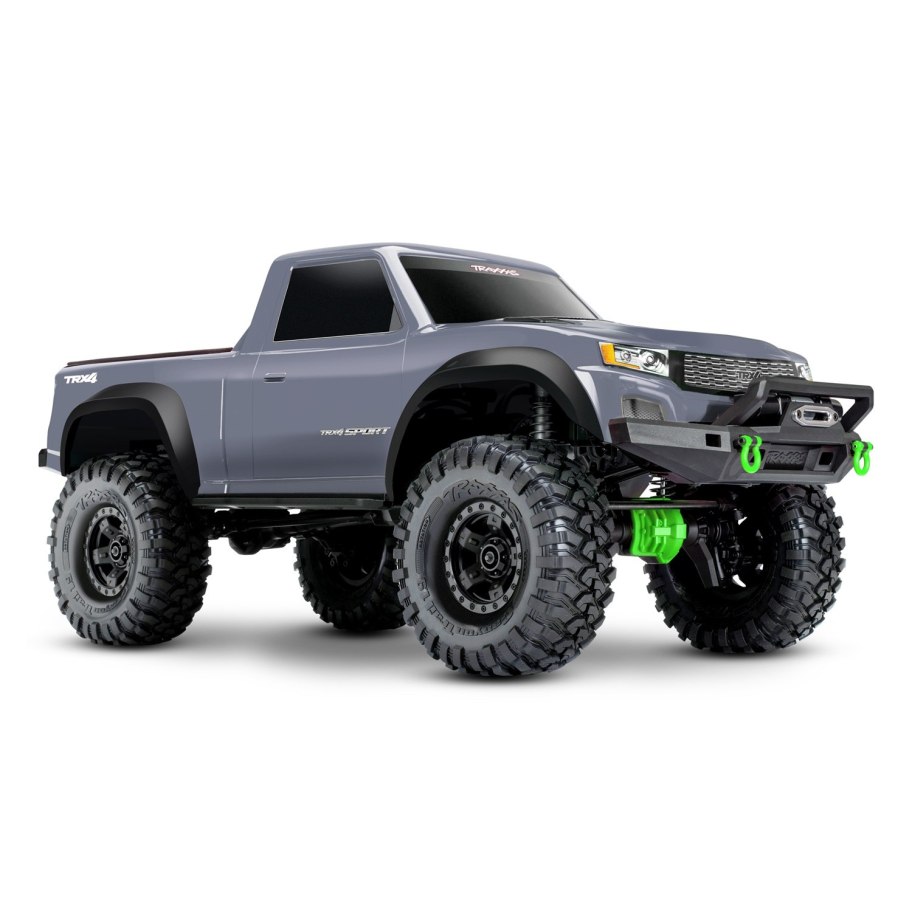

Traxxas TRX-4 Sport 1/10 TQ XL-5 Crawler Gray

The Traxxas TRX-4 Sport is a 1/10 scale trail truck/crawler with a clipless pickup body, a rigid steel frame and portal axles that increase ground clearance and eliminate torque twist. Its wheelbase is adjustable across four positions (300/312/324/336 mm) and the rear shock tower positions can be set for short- or long-wheelbase configurations.

It runs the waterproof XL-5 HV ESC with five drive profiles (Sport, Race, Training Mode, Trail and Crawl), a Titan 21T reverse-rotation 550-size motor, and a single-speed transmission with spool-locked front and rear differentials for maximum rock-crawling traction. Anodised aluminium GTS shocks with threaded bodies for ride-height adjustment and 1.9" Canyon Trail tyres round out a package built for trail driving and technical crawling.

Technical specifications

• Scale: 1/10
• Skill level: 1
• Weight: 2.63 kg
• Length: 557 mm
• Width: 249 mm
• Height: 241 mm
• Wheelbase: 312 mm (adjustable: 300/312/324/336 mm)
• Centre ground clearance: 80 mm
• Drivetrain: full-time shaft-driven 4WD
• Transmission: single-speed, spool-locked differentials
• Gear pitch: 32
• Steering servo: 2075X, metal gear, waterproof
• Transmitter: TQ 2.4 GHz, 2-channel
• Battery compartment: 159 x 47 x 23/26 mm
• Motor: Titan 21T, 550-size, reverse rotation
• ESC: XL-5 HV, waterproof, accepts 6-7 cell NiMH and 2-3S LiPo
• Tyres: Canyon Trail 1.9"
• Colour: grey

Box contents

• 1 x Traxxas TRX-4 Sport
• 1 x XL-5 HV ESC (installed)
• 1 x Titan 21T motor (installed)
• 1 x TQ 2.4 GHz transmitter
• 1 x maintenance tool kit

Vehicle type

Vehicle with electronics already installed, but battery and charger are not included (sold separately).

What you need to complete it

• 6-7 cell NiMH or 2S-3S LiPo battery
• Charger (Traxxas EZ-Peak 2970 recommended)
• 4 x AA batteries for the transmitter
