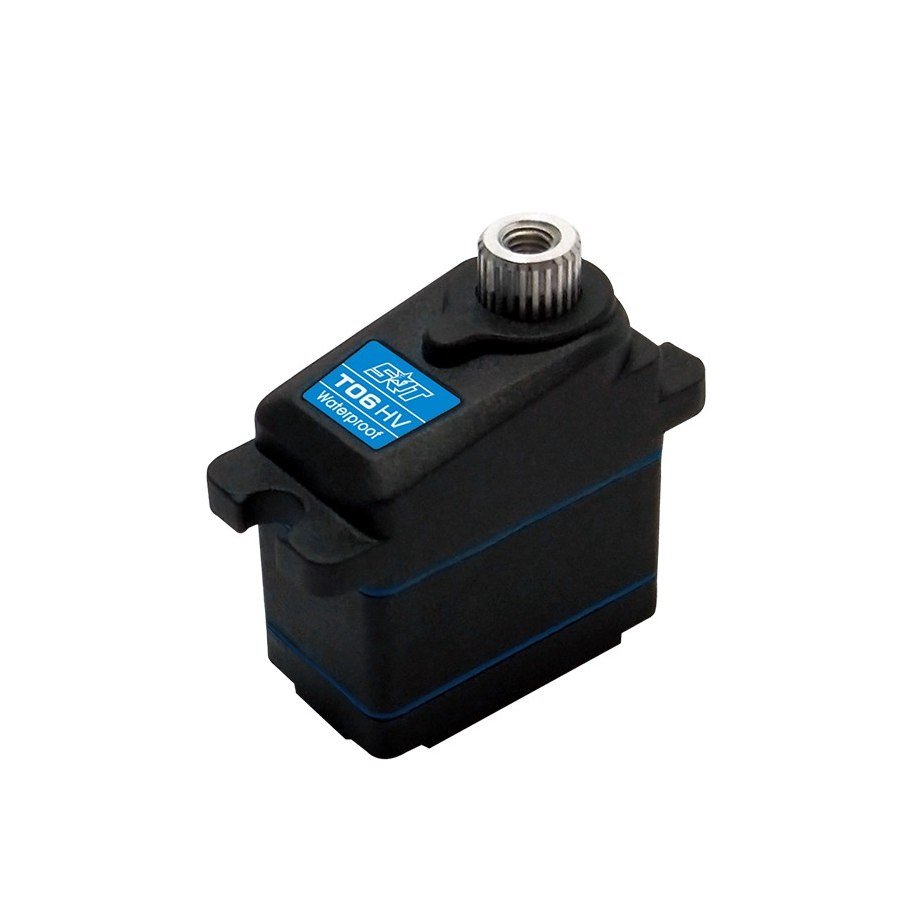

Servo SRT T06HV Waterproof (TRX-4 Diff Lock)

Servo SRT T06HV Waterproof (TRX-4 Diff Lock)

SRT-T06
SRT
€27.90
Warranty card validation is required. Please follow the instructions in this link. Warranty Instructions

Buy this product and earn 28 points Buy this product and earn 28 points

Order it before 1 hours and 24 minutes and receive it tomorrow with GLS

  Secure Payment

Pay now with our secure payment systems. Card, PayPal or Bizum

  International Shipping

International shipping available with MBE or Correos.

  Return policy

15 days for exchanges and returns (*)

Item no 4.8V 6.0V 7.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
T06HV  0.16 1.9/26.4 0.12 2.5/34.7 0.10 2.8/38.9  Copper & Alu DC Plastic 22.5*12.5*24.0 16.0

PRODUCT SPECIFICATIONS

  • Type: Digital

  • Bearing: Dual

  • Motor Type: DC

  • Gear Type: Metal

  • Gear Material: Copper & Alu

  • control system: pulse width control

  • working frequence: 1520μs / 330hz

  • operating voltage: dc4.8-7.4v

  • operating temperature range: -10 to + 60 degree

  • operating speed (4.8v): 0.16 sec/60 degrees at no load

  • operating speed (6.0v): 0.12 sec/60 degrees at no load

  • operating speed (7.4v): 0.10 sec/60 degrees at no load

  • stall torque (4.8v): 1.9kg.cm (26.4 oz/in)

  • stall torque (6.0v): 2.5kg.cm (34.7 oz/in)

  • stall torque (7.4v): 2.8kg.cm (38.9 oz/in)

  • potentiometer drive: direct drive

  • dimensions: 22.5x12.5x24.0 mm /0.89x0.49x0.94 in

  • weight: 16.0g (0.56 oz)

  • connector wire length: jr 300 mm

SRT-T06
6969006060613
