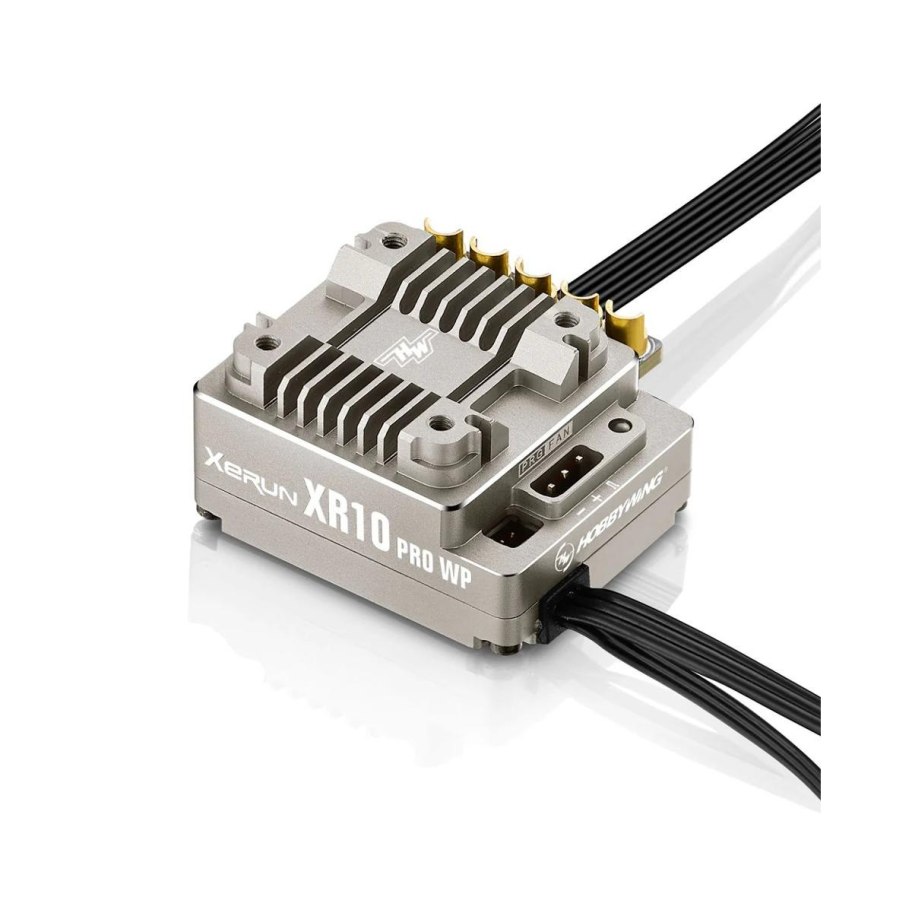

Hobbywing Xerun XR10 Pro WP 160A Brushless ESC

Hobbywing XeRun XR10 Pro WP 160A IP67 waterproof brushless ESC for 1/10

The Hobbywing XeRun XR10 Pro WP (part number 30112618) is the waterproof version of the XR10 Pro ESC. It is a 160 A continuous / 1200 A peak sensored brushless ESC for 2S LiPo which, according to the manufacturer, features a waterproof and dustproof design that exceeds the IP67 industrial standard, ready to race in rain, dust or sand. Hobbywing warns that it must not be submerged, as damage may occur.

Based on the XR10 Pro platform, it offers strong output capability and is suitable for Modified and Stock racing in 1/10 on-road and off-road: touring cars, buggy, drift, F1 and rally. Its 32-bit M4 processor improves response speed and calculation accuracy, and allows the throttle curve to be adjusted from -10 to +10 or customised. Maximum brake force can be set between 101% and 150%, designed for the tall gear ratios commonly used in Stock/Spec classes.

The built-in switch-mode BEC is adjustable from 5 to 7.4 V in 0.1 V steps for high-voltage servos. It includes reverse polarity protection and a smart start/stop fan. With the OTA module and the HW Link V2 app you can tune the ESC, upgrade the firmware and view throttle, voltage, temperatures and RPM in real time, as well as save logs to analyse after the run.

Hobbywing XR10 Pro WP technical specifications

• Manufacturer part number: 30112618
• Scale: 1/10
• Type: brushless, sensored
• Waterproof: yes, IP67 (do not submerge)
• Continuous / peak current: 160 A / 1200 A
• Input voltage: 2S LiPo
• BEC: switch mode, 5-7.4 V @ 5 A
• Input wires: 2 x 13 AWG, 200 mm
• Output wires: 3 x 13 AWG, 200 mm
• Connectors: not included
• Fan: 25 x 25 x 10 mm, 5-7.4 V, powered by the BEC
• Programming: LCD Program Box G2, LCD Program Box Pro, OTA module; separate programming port
• Data logging: extreme values, real-time and history via OTA (no current data)
• Firmware upgrade: yes
• Dimensions: 37.7 x 37.2 x 19.6 mm
• Weight: 95.6 g (with wires)
• Compatible motors: sensored and sensorless brushless
• Turn limit: touring car 4.5T or higher; buggy 5.5T or higher
• Use: 1/10 touring car and buggy, drift, F1 and rally

Frequently asked questions

Can I use the XR10 Pro WP in wet conditions?

Yes. It is designed for rain, dust and sand with IP67 protection, but the manufacturer states that it must not be submerged.

Which motors does the XR10 Pro WP support?

Sensored or sensorless brushless motors. A wind of 4.5T or higher is recommended for touring cars, and 5.5T or higher for buggies.

Does the reverse polarity protection protect the whole system?

It protects the ESC. To protect the whole system you need the optional non-polarity capacitor; the standard capacitor would be damaged if the battery is reversed and must be replaced.

How is it programmed and updated?

With the LCD Program Box G2, LCD Program Box Pro or the OTA module with the HW Link V2 app, which lets you adjust parameters and upgrade the firmware.

What is the difference from the standard XR10 Pro?

The XR10 Pro WP is based on the XR10 Pro platform and adds IP67 water and dust protection.
