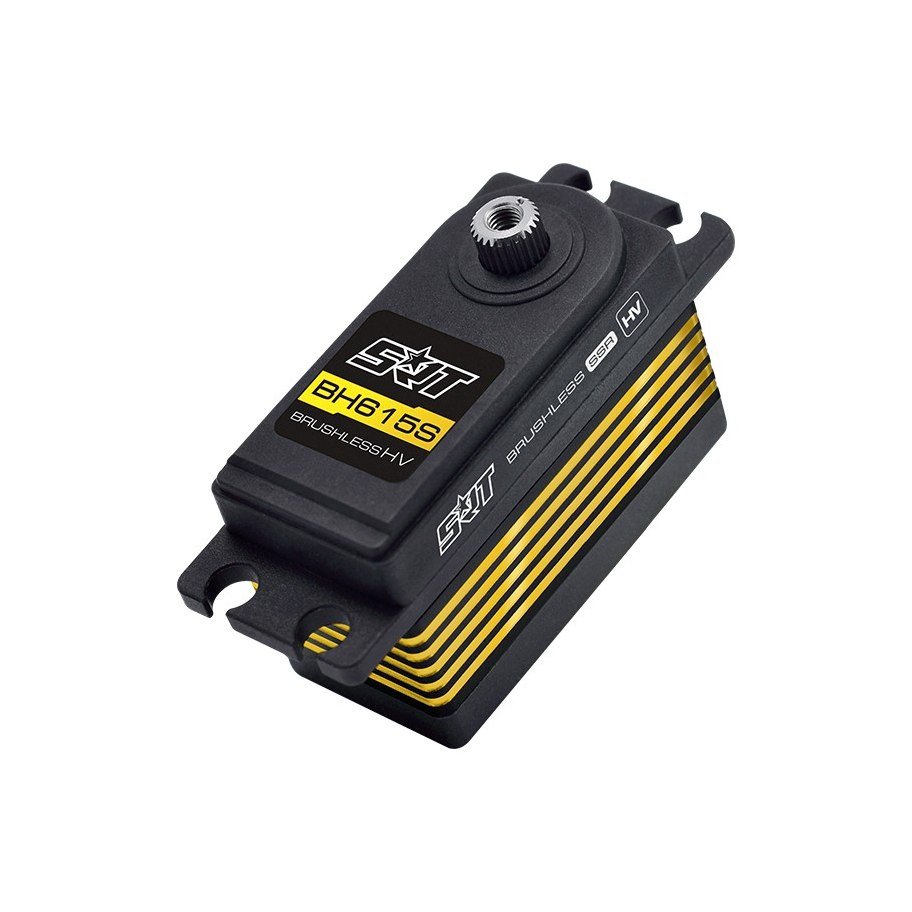

SRT BH615S 1/10Th On-Road HV Brushless Servo

SRT BH615S 1/10Th On-Road HV Brushless Servo

SRT-BH615S
SRT
€99.99
Warranty card validation is required. Please follow the instructions in this link. Warranty Instructions

Buy this product and earn 100 points Buy this product and earn 100 points

Order it before 51 minutes and receive it tomorrow with GLS

  Secure Payment

Pay now with our secure payment systems. Card, PayPal or Bizum

  International Shipping

International shipping available with MBE or Correos.

  Return policy

15 days for exchanges and returns (*)

KEY FEATURES

  • Ideal for 1/10 on road applications

  • incredible efficiency and low power consumption

  • Aluminum case for good heat dissipation

  • NMB dual main bearings

  • SSR mode compatible

  • 25T output shaft

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
BH615S 0.062 10.0/138.8 0.052 13.0/180.5 0.045 15.0/208.3 Titanium & Alu Brushless Semi-metal 41.0*20.0*26.4 43.0

PRODUCT SPECIFICATIONS

  • Type: Digital

  • Bearing: Dual

  • Motor Type: Brushless

  • Gear Type: Metal

  • Gear Material: Titanium & Alu

  • control system: pulse width control

  • working frequence: 1520μs / 330hz

  • operating voltage: dc6.0-8.4v

  • operating temperature range: -10 to + 60 degree

  • operating speed (6.0v): 0.062 sec/60 degrees at no load

  • operating speed (7.4v): 0.052 sec/60 degrees at no load

  • operating speed (8.4v): 0.045 sec/60 degrees at no load

  • stall torque (6.0v): 10.0kg.cm (138.8 oz/in)

  • stall torque (7.4v): 13.0kg.cm (180.5 oz/in)

  • stall torque (8.4v): 15.0kg.cm (208.3 oz/in)

  • potentiometer drive: direct drive

  • dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in

  • weight: 43.0g (1.52 oz)

  • connector wire length: jr 180 mm

SRT-BH615S
6969006150062

Data sheet

Type
Servo
