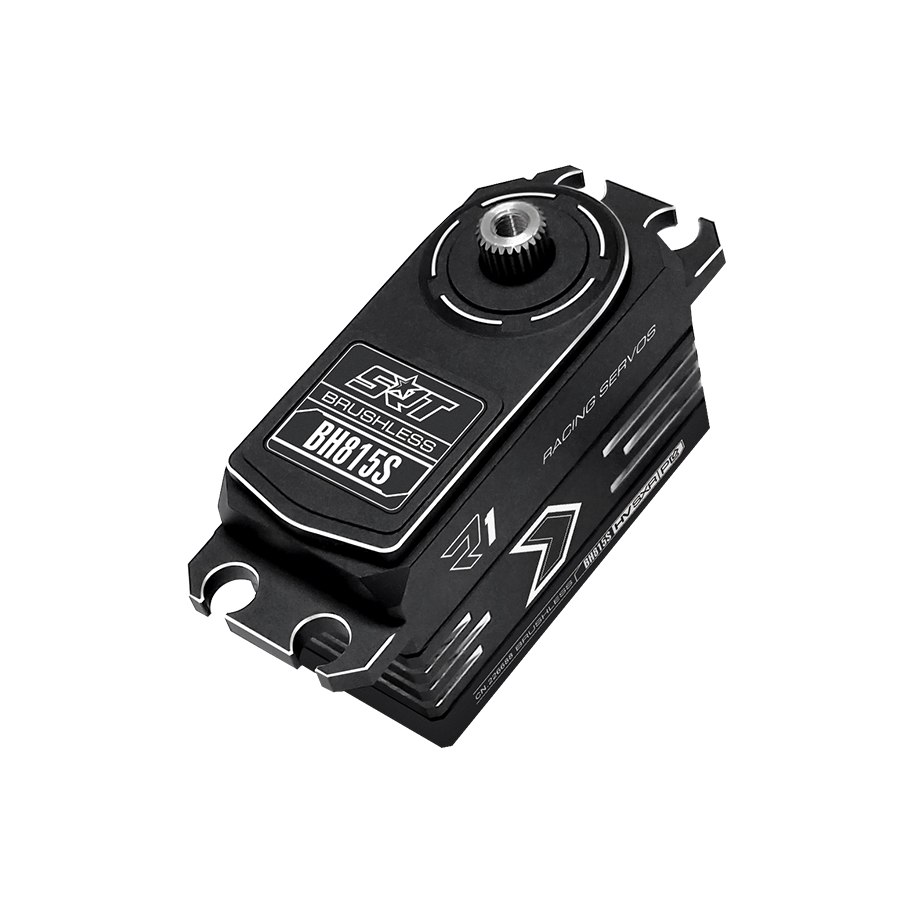

SRT BH815S 1/10 On-Road HV Brushless Servo
SRT-BH815S
Secure Payment
Pay now with our secure payment systems. Card, PayPal or Bizum
International Shipping
International shipping available with MBE or Correos.
Return policy
15 days for exchanges and returns (*)
KEY FEATURES
-
Unique Mechanic Design
-
incredible efficiency and low power consumption
-
Standard dimension make it perfect for vehicles that can benefit from a high quality servo
-
CNC Machined aluminum case for exceptional cooling
-
SSR mode compatible
-
2 μsec Dead Band Superior Holding Torque
-
1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) |
Weight (g) |
|||
| Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
||||||
| BH815S | 0.065 | 10.0/138.8 | 0.055 | 13.0/180.5 | 0.050 | 15.0/208.3 | Titanium & Alu | Brushless | CNC | 41.0*20.0*26.4 | 52.0 |
Application :
1/10 Electric/ Car
1/10 Nitro/ Car
Off-road
On-road
PRODUCT SPECIFICATIONS
-
Type: Digital
-
Bearing: Dual
-
Motor Type: Brushless
-
Gear Type: Metal
-
Gear Material: Titanium & Alu
-
control system: pulse width control
-
working frequence: 1520μs / 330hz
-
operating voltage: dc6.0-8.4v
-
operating temperature range: -10 to + 60 degree
-
operating speed (6.0v): 0.065 sec/60 degrees at no load
-
operating speed (7.4v): 0.055 sec/60 degrees at no load
-
operating speed (8.4v): 0.050 sec/60 degrees at no load
-
stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
-
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
-
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
-
potentiometer drive: direct drive
-
dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
-
weight: 52.0g (1.83 oz)
-
connector wire length: jr 80 mm
SRT-BH815S
6969008001553
Data sheet
- Type
- Servo
