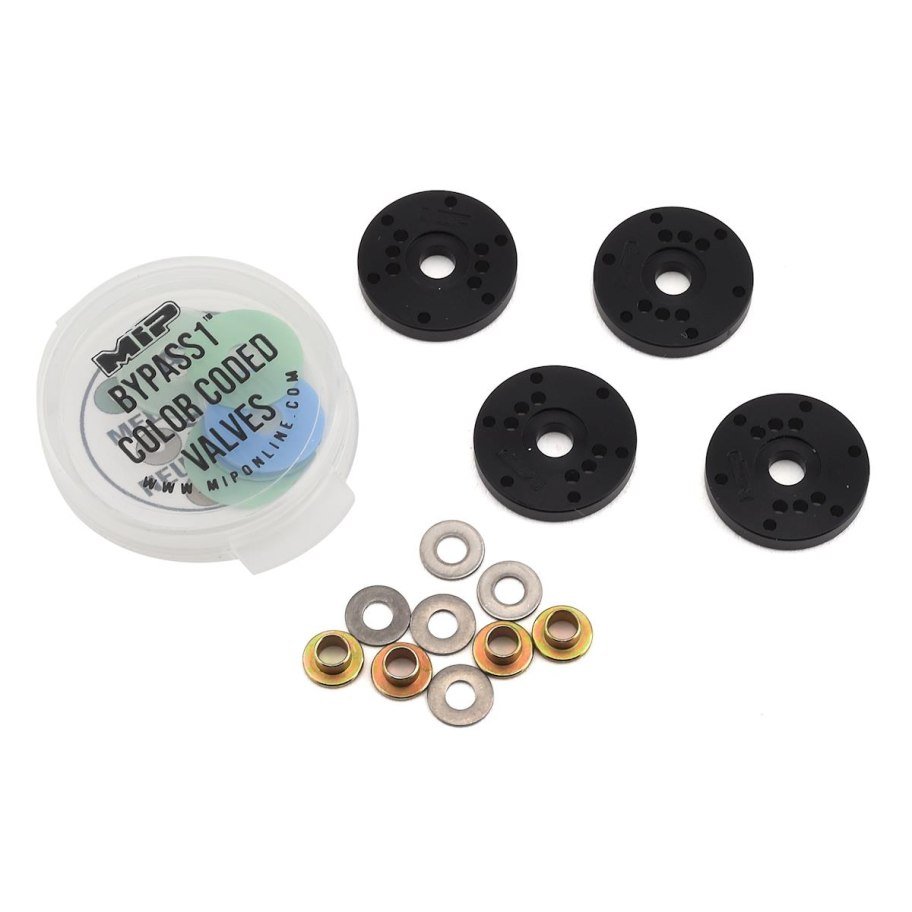

MIP Bypass1 Mugen MBX8r 16mm Piston Set

Reference: MIP18400

Manufacturer: MIP TOOLS

€49.99

Holes

Buy this product and earn 50 points

Order it before 90 hours and 37 minutes and receive it on Tuesday, 5 May with GLS

Secure Payment

Pay now with our secure payment systems. Card, PayPal or Bizum

International Shipping

International shipping available with MBE or Correos.

Return policy

15 days for exchanges and returns (*)

Description
Product Details

MIP Bypass1™: Dynamic Fluid Management

MODEL: MUGEN MBX8R / SPARKO (16mm) | REF: SERIES #18400/#18410

Your ultimate technological advantage. MIP Bypass1™ pistons represent the evolution of RC suspension engineering. Unlike traditional static systems, Bypass1™ technology puts active oil flow management in your hands.

Developed under strict dyno testing (Dyno-Tuned Technology), these pistons replicate the compression curve of your MBX8R's stock components, but allow you to unlock unprecedented rebound (extension) adjustment via interchangeable membrane valves.

🧬 Competition DNA

🔹 Adam Drake & Ryan Maifield: Technology validated by world champions.
🔹 Smart Flow: Adjust rebound independently of oil viscosity.
🔹 Made in USA: Bearing-grade CNC machining.

Verified Chassis Compatibility

Brand / Manufacturer	Supported Models (16mm Shocks)
MUGEN SEIKI	• MBX8R Buggy (Nitro/Eco) • MBX8R Truggy (Nitro/Eco)
SPARKO RACING	• F8 Buggy

System Specifications

Parameter	Technical Detail
Base Material	Low-friction Polymer (Bearing Grade)
Hole Variants	Option A: 6-Hole (Pre-drilled Ø 1.3mm - Ref #18400) Option B: 8-Hole (Pre-drilled Ø 1.2mm - Ref #18410)
Customization	Drillable material for custom sizing

Valve Color Coding (Color Coded Valves™)

The Bypass1™ system uses valves of varying thicknesses so you can modulate the shock's return speed.

Color	Thickness	Behavior	Recommended Use
GREEN	.003	Fast Rebound	Rough Track / Low Grip
BLUE	.005	Medium Rebound	MBX8R Standard Setup
CLEAR	.007	Slow Rebound	Big Jumps / High Grip

📋 Initial Configuration Protocol (Base Setup)

Drilling: If your MBX8R setup requires holes larger than 1.3mm, drill the pistons before installation. If not, use them as is.
Oil: Maintain the same density (CPS/CST) you use with stock pistons.
Valve Installation: Place 1 Clear valve (.007) on top of the piston (upper face) as a starting point.
Bench Test: Perform the "Drop Test". The "Pack" (compression resistance) should feel identical to stock.
Fine Tuning: If the rebound is slow, switch to the Green valve (.003). If it is fast, stack valves (Stacking) until you achieve the desired effect.

Technical FAQ

How does valve "Stacking" affect performance?

Stacking valves allows you to create a progressive damping curve. By placing a thin valve (.003) followed by a thick one (.007), you get a fast initial response that progressively stiffens, ideal for technical tracks.

Is it necessary to change the shock oil?

Generally, no. Dyno-Tuned technology is designed to work with your usual oil. However, if you are looking for extreme reactivity using green valves (.003) and still find the suspension slow, you can reduce the oil viscosity by approximately 30-60 CPS (cSt) (equivalent to dropping 2.5-5.0 WT) to compensate.
